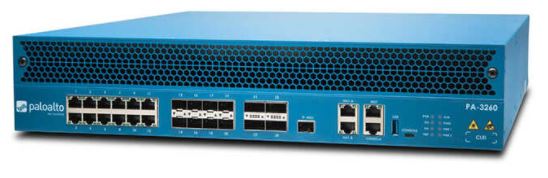

Palo Alto PA-3260 (PAN-PA-3260)

Performance and Capacities

Firewall throughput (HTTP/appmix)

8.3 / 9.2 Gbps

Threat Prevention throughput (HTTP/appmix)

4.1 / 5.0 Gbps

IPsec VPN throughput

5.0 Gbps

Max sessions

3M

New sessions per second

105,000

Virtual systems (base/max)

1/6

Hardware Specifications

I/O

10/100/1000 (12), 1G/10G SFP/SFP+ (8), 40G QSFP+ (4)

Management I/O

10/100/1000 out-of-band management port (1)
10/100/1000 high availability (2)
10G SFP+ high availability (1)
RJ-45 console port (1)
Micro USB (1)

Storage Capacity

240 GB SSD

Power Supply (Avg/Max Power Consumption)

Redundant 650-watt AC or DC (180 / 240)

Max BTU/hr

819

Input Voltage (Input Frequency)

AC: 100–240 VAC (50/60Hz)
DC: -48 V @ 4.7 A, -60 V @ 3.8 A

Max Current Consumption

AC: 2.3 A @ 100 VAC, 1.0 A @ 240 VAC
DC: -48 V @ 4.7 A, -60 V @ 3.8 A

Mean Time Between Failure (MTBF)

14 years

Rack Mount Dimensions

2U, 19” standard rack (3.5” H x 20.53” D x 17.34″ W)

Weight (Standalone Device/As Shipped)

29 lbs / 41.5 lbs

Safety

cTUVus, CB

EMI

FCC Class A, CE Class A, VCCI Class A
