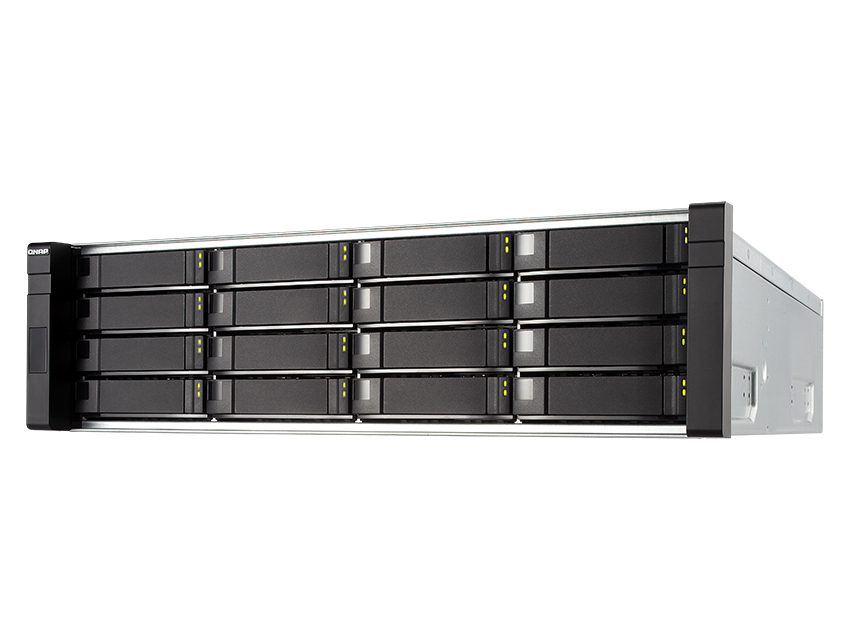

QNAP EJ1600

Mã sản phẩm

QNAP EJ1600

Host Interface

Three SAS 6Gb/s 4x wide port (SFF-8088)

Hard Drive

16 x 3.5″/2.5″ SAS 6Gbps hard drive, or 2.5″ SAS SSD

LED Indicators

System Power LED (Blue): on/off
System Status (Green/ Red): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged
LCD Status Display (Two-digit number): Status of JBOD connection

Form Factor

3U rackmount

Dimensions

618 (D) x 446.2 (W) x 132 (H) (excluding front grips)

Weight

Net weight (NAS only): 24.11 kg/ 53.15 lb
Gross weight (with packing and accessories): 33.76 kg/ 74.43 lb

Temperature

0- 40˚C

Humidity

5~95% RH non-condensing, wet bulb: 27˚C

Power Consumption (In Operation)

344.19 W

Sound Level*

Sound pressure (LpAm): 53.5 dB(A)

Power Supply

Redundant/ Hot Swap ATX Power Supply, 450W, 90-240Vac~, 50-60Hz

Fan

Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)

Electro-Magnetic Compatibility (EMC)

• FCC Class A (USA only)
• CE Mark ( EN55022 Class A, EN55024)

SAFETY Standard

• EN60950
• BSMI
• VCCI
• CB
• LVD
