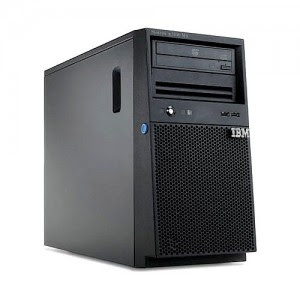

Server IBM X3100M4

Model

Server IBM X3100M4

Form factor/height

Tower

Processor (max)

Intel Xeon E3-1200v2 series (quad-core) up to 3.6 GHz/8 MB/1600 MHz, Intel Core i3 2100 series (dual-core) up to 3.4 GHz/3 MB/1333 MHz, Pentium (dual-core) up to 3.0 GHz/3 MB/1333 MHz and low-cost Celeron

Number of processors (std/max)

1/1

Cache (max)

8 MB (processor and model dependent)

Memory (max)

1 × 4 GB standard, maximum 32 GB 1600 MHz DDR-3 UDIMMs via 4 DIMM slots

Expansion slots

4 PCIe slots (x16, x8, x4, x1)

Disk bays (total)

3.5″ simple swap 4 Serial ATA (SATA) or 2.5″ hot-swap 8 SAS/SATA

Maximum internal storage

16 TB 3.5″ simple swap SATA or 8 TB 2.5″ hot-swap SAS/SATA

Network interface

Integrated dual Gigabit Ethernet

Power supply (std/max)

350 W fixed or 80-PLUS® certified 300 W fixed (4U model with 3.5″ simple-swap HDDs, model dependent)/430 W hot-swap redundant power supply (5U model with 2.5″ hot-swap HDDs)

RAID support

ServeRAID-C100 for System x supports integrated RAID-0, -1; supports hardware RAID-0, -1, -10, -5, -6 for advanced data protection

Systems management

IMM2 with optional upgrade key to Remote presence

Operating systems supported

Microsoft Windows Server 2012/Microsoft Windows Server 2008 R2/Microsoft Windows Server 2008, SBS 2011, Red Hat Linux, SUSE Linux
