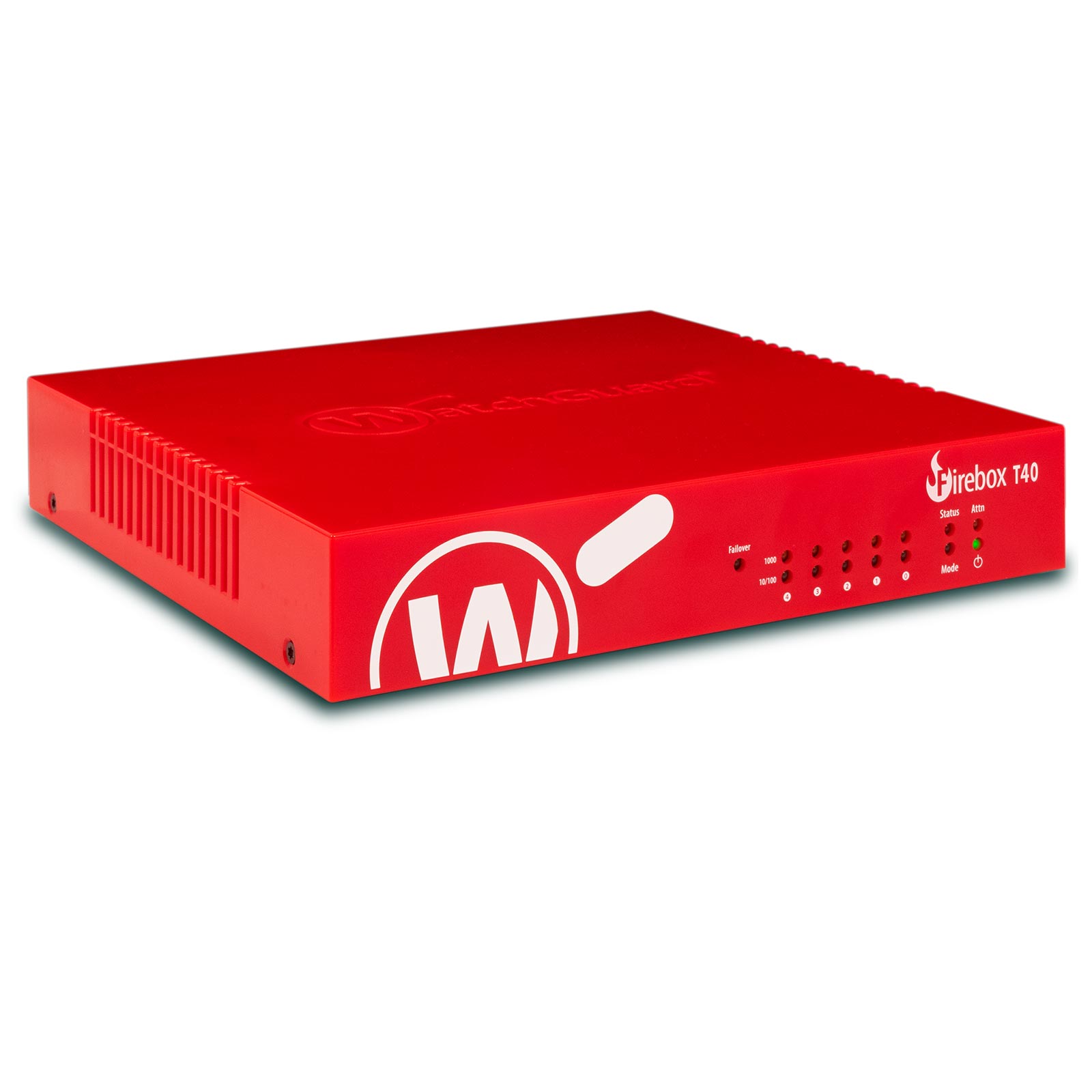

Firewall WatchGuard Firebox T40
|
Firebox T Series |
T40/ T40-W |
|
THROUGHPUT |
|
|
UTM (full scan) |
300 Mbps |
|
Firewall (IMIX) |
1 Gbps |
|
VPN (IMIX) |
272 Mbps |
|
HTTPS (IPS enabled, full scan) |
92 Mbps |
|
Antivirus |
623 Mbps |
|
IPS (full scan) |
510 Mbps |
|
Firewall (UDP 1518) |
3.4 Gbps |
|
VPN (UDP 1518) |
880 Mbps |
|
CAPACITY |
|
|
Interfaces 10/100/1000 |
5 |
|
PoE ports |
N/A |
|
I/O interfaces |
1 Serial/2 USB |
|
Concurrent connections |
4.3M |
|
Concurrent connections (proxy) |
200,000 |
|
New connections per second |
18,000 |
|
VLANs |
50 |
|
WSM licenses (incl) |
0 |
|
TDR Host Sensors included |
20 |
|
VPN TUNNELS |
|
|
Branch Office VPN |
30 |
|
Mobile VPN |
30 |
|
SECURITY FEATURES |
|
|
Firewall |
Stateful packet inspection, TLS decryption, proxy firewall |
|
Application proxies |
HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3S, SMTPS, IMAPS and Explicit Proxy |
|
Threat protection |
DoS attacks, fragmented & malformed packets, blended threats |
|
Filtering options |
Browser Safe Search, Google for Business |
|
VPN |
|
|
Site to Site VPN |
IKEv2, IPSec, Policy and Route Based Tunnels, TLS hub and spoke |
|
Remote Access VPN |
IKEv2, IPSec, L2TP, TLS |
|
VISIBILITY |
|
|
Logging and notifications |
WatchGuard Cloud & Dimension, Syslog, SNMP v2/v3 |
|
Reporting |
WatchGuard Cloud includes over 100 pre-defined reports, executive summary and visibility tools |
|
CERTIFICATIONS |
|
|
Security |
Pending: CC EAL4+, FIPS 140-2 |
|
Safety |
NRTL/C, CB |
|
Network |
IPv6 Ready Gold (routing) |
|
Hazardous substance control |
WEEE, RoHS, REACH |
|
NETWORKING |
|
|
SD-WAN |
Multi-wan failover, dynamic path selection, jitter/loss/latency measurement |
|
High Availability |
Active/passive, active/active |
|
QoS |
802.1Q, DSCP, IP Precedence |
|
Traffic Management |
By policy or application |
|
IP address assignment |
Static, DHCP (server, client, relay), PPPoE, DynDNS |
|
NAT |
Static, dynamic, 1:1, IPSec traversal, policy-based |
|
Link aggregation |
802.3ad dynamic, static, active/backup |
